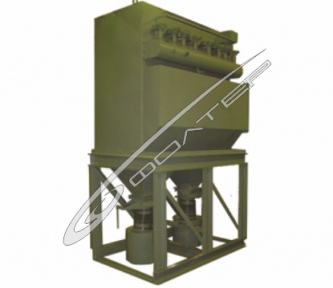

Filters of type DCF
The cartridge filters with the pulsed jet of type DCF are used for the high efficient cleaning of air (gases) from all types of dusts (including finely dispersed solid aerosols). Filters of type DCF are more efficient as compared to the baghouse filters and are able to catch finely dispersed aerosols, which are formed, for instance, in the process of plasma or laser sharpening, welding or other technological processes, connected with the formation of condensed aerosol.
Наименование показателя |
Значение |
||||||||||
ФПИ-2 |
ФПИ-2А |
ФПИ-4 (4А) |
ФПИ-6 |
ФПИ-8 |
ФПИ-10 |
ФПИ-12 |
ФПИ-16 |
ФПИ-20 |
ФПИ-24 |
ФПИ-32 |
|
Номинальная производительность по очищаемому газу, м3/ч |
2000 |
2000 |
4000 |
6000 |
8000 |
10000 |
12000 |
16000 |
20000 |
24000 |
32000 |
Количество секций, шт. |
1 |
1 |
1 |
2 |
2 |
3 |
3 |
4 |
6 |
6 |
8 |
Массовая концентрация пыли в очищаемом газе на входе, г/м3, (не более) |
10 |
10 |
10 |
10 |
10 |
10 |
10 |
10 |
10 |
10 |
10 |
Аэродинамическое сопротивление, кПа (кгс/м2) |
1,2-2,0 (120-200) |
||||||||||
Давление продувочного воздуха, МПа (кгс/см2) |
0,5-0,6 (5-6) |
||||||||||
Наибольший расход продувочного воздуха, м3/ч |
7 |
7 |
15 |
30 |
45 |
53 |
58 |
60 |
75 |
90 |
120 |
Допустимое давление (разрежение) внутри аппарата, кПа (кгс/м2) |
5,0 (500) |
||||||||||
Габаритные размеры, мм: длина А ширина В высота Н |
1285 872 2424 |
1285 872 2840 |
1038 1276 2424 (2574) |
1538 1276 2424 |
1988 1276 2424 |
2488 1406 2424 |
2938 1406 2424 |
3888 1406 2424 |
2488 2966 2424 |
2938 2966 2424 |
3888 2966 2424 |
Масса, кг (не более) |
257 |
307 |
340 (420) |
540 |
660 |
845 |
940 |
1245 |
1720 |
1985 |
2500 |
